Forged Fittings

We are one of the leading Manufacturers, Suppliers & Exporters of Forged Fittings in different shapes and sizes and with different specifications as per the customers’ requirement. These Forged Socket weld & Threaded Fittings are characterized by high durability, resistance to corrosion, flawless finish and complete reliability in service. Our complete range is stringently tested by our well equipped testing unit, to ensure their compliance with international quality norms. These Forged Fittings are used in various industries like Oil & gas, Petrochemical, Pharmaceutical, Fertilizers, Construction, Food, Power and Instrumentation.


Forged Fittings Specification :

Specification : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

Size : 1/2"NB to 4"NB IN

Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

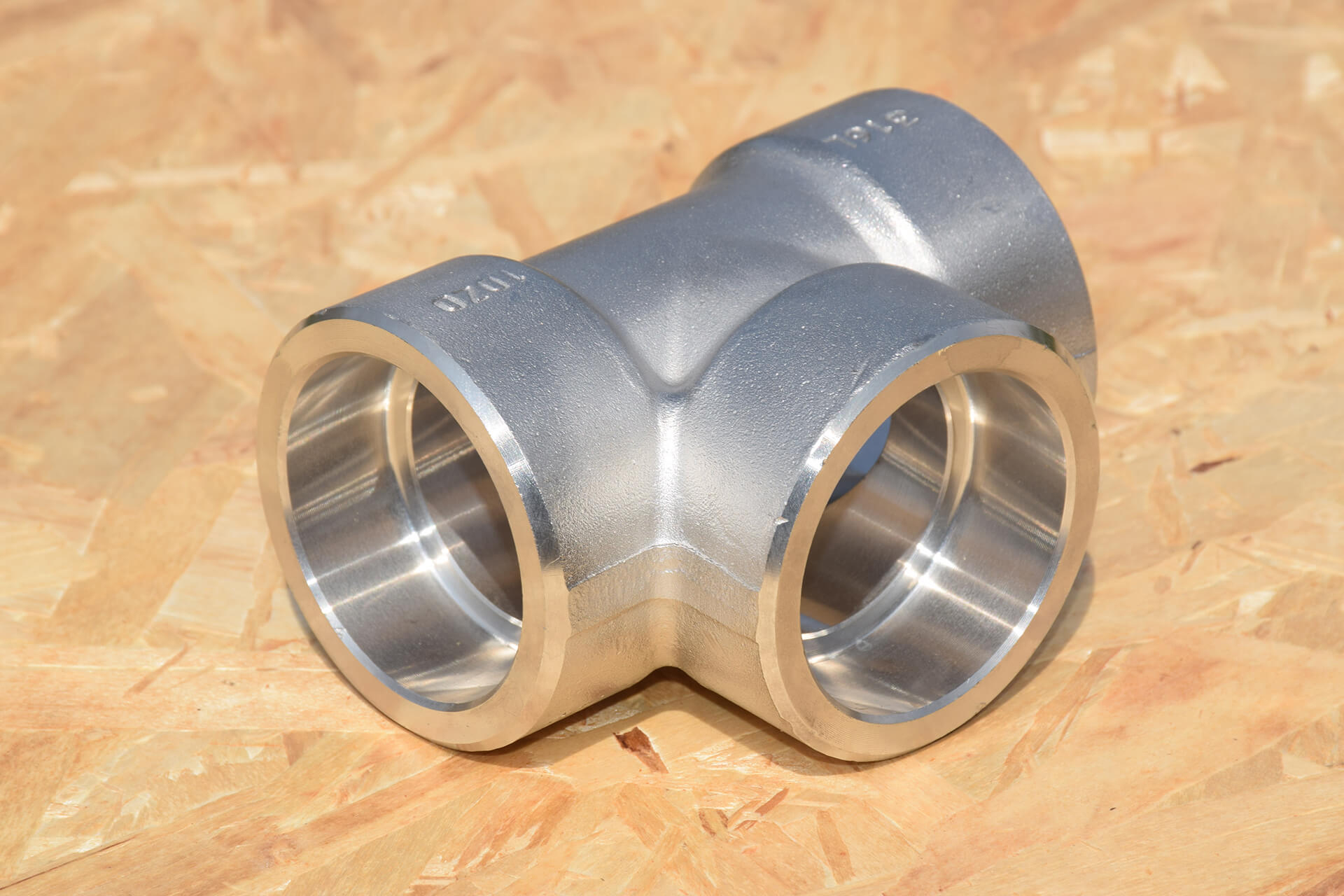

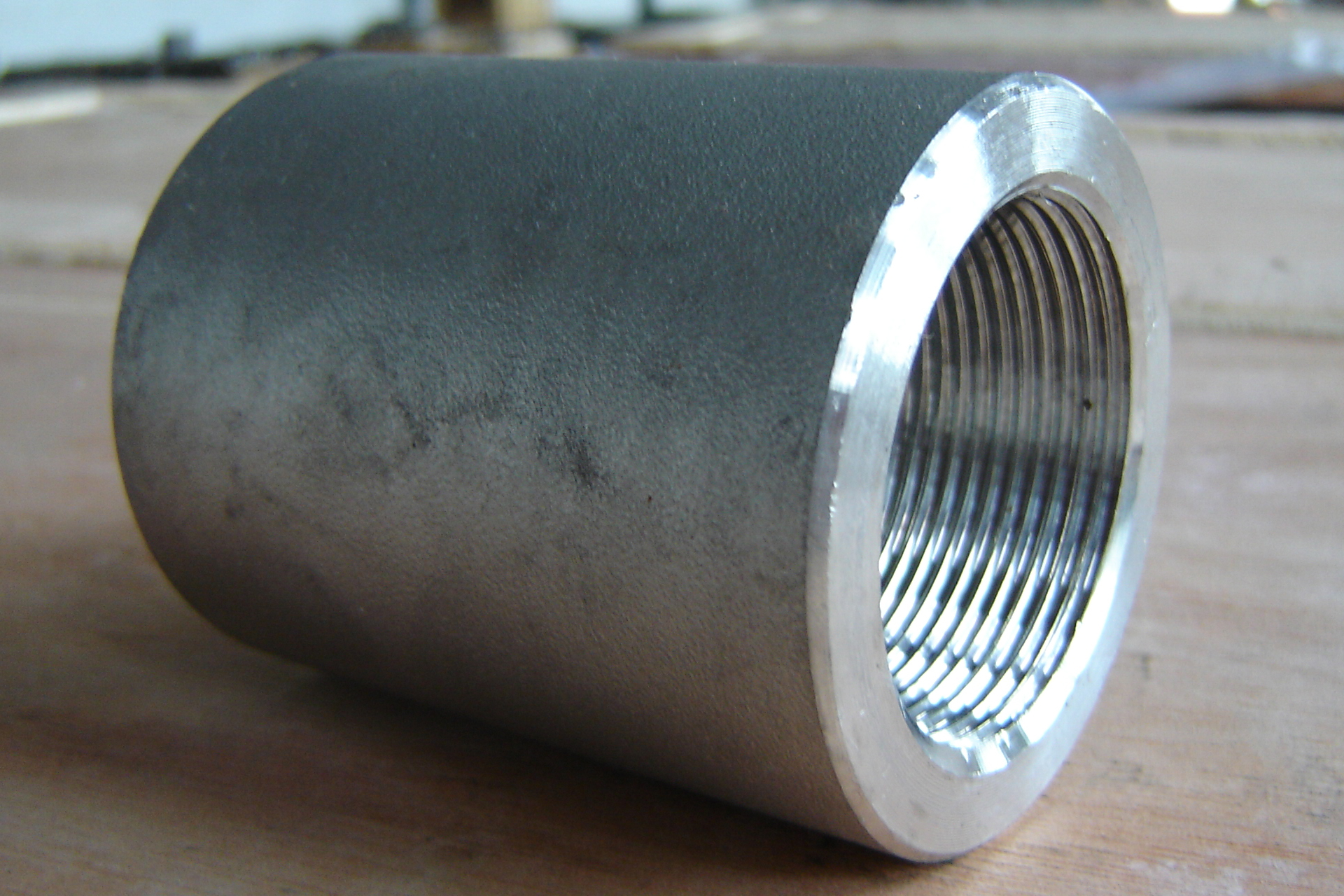

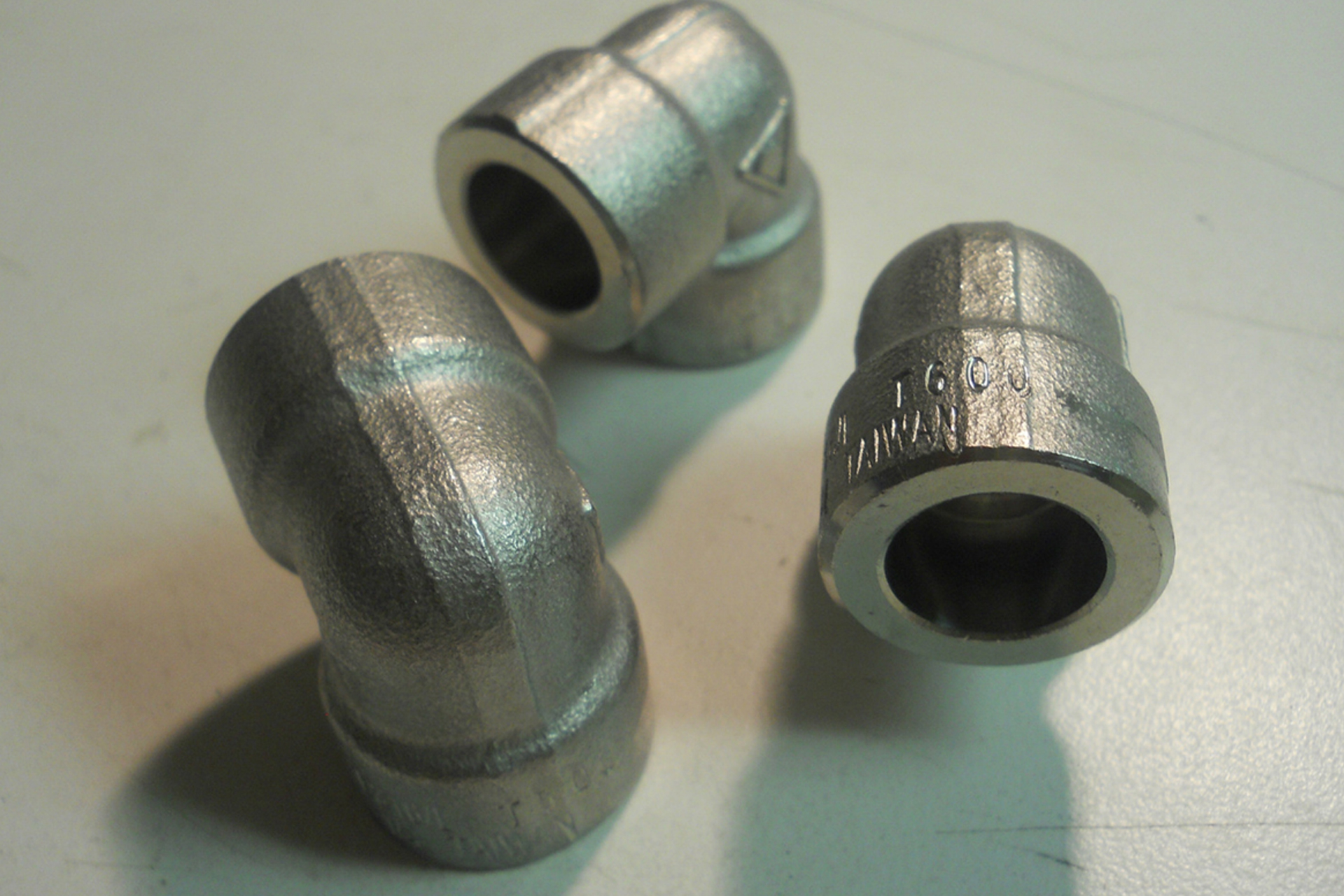

Types : Tee, Union, Full Coupling, Half Coupling, Elbow 45 Deg & 90 Deg, Swage Nipple, Cross, Cap, Plug Bush

Grades : ASTM / ASME SA 182 F 202, 304 , 304L , 304H, 309H, 310H , 316 , 316H , 316L , 316 LN , 317 , 317L , 321 , 321H , 347 , 347 H, 904L


Stainless Steel Forged Fittings Specification

Size : 1/2"NB to 4"NB IN

Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

Specifications : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

Form : 45 deg Elbow, 90 deg Elbow, Tee, Cross, Coupling, Half Coupling, Cap, Hex Nipple etc.

Stainless Steel Grades : ASTM / ASME SA 182 F 202, 304 , 304L , 304H, 309H, 310H , 316 , 316H , 316L , 316 LN , 317 , 317L , 321 , 321H , 347 , 347 H, 904L


Carbon Steel Forged Fittings Specification

Size : ½”NB to 48″NB in

Carbon Steel Grades : ASTM A105 / A694 / A350 LF3 / A350 F42 / F46 / F52 / F56 / F60 / F65 / F70, LF2. , A420 WPL3 / A420 WPL6


Alloy Steel Forged Fittings Specification

Size : ½”NB to 48″NB in

Alloy Steel Grades : ASTM / ASME A182 GR F5, F9, F11, F12, F22, F91.


Duplex Steel Forged Fittings Specification

Range : 1/2"NB TO 4"NB IN

Duplex Steel Grades : ASTM A182 / ASME SA182 F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61.


Super Duplex Steel Forged Fittings Specification

Size : 1/2"NB TO 4"NB IN(Socketweld & Screwed-Threaded)

Super Duplex Steel Grades : ASTM A182 / ASME SA182 UNS NO. S32750 / S32760 / S32950


Nickel Alloy Forged Fittings Specification

Range : 15 NB UP TO 600 NB IN

Nickel Alloy Grades: ASTM SB564, SB160, SB472, SB162 Nickel 200 (N02200), Nickel 201 (N02201), Nickel 205 (N02205)


Titanium Forged Fittings Specification

Range : 15NB TO 100 NB (DN6~DN100)

Titanium Grades: Gr1,Gr2,Gr3,Gr4,Gr5,Gr7,Gr11,Gr12,Gr23


Brass Forged Fittings Specification

Size : 1/8”- 6”

Working Pressure : 1000 psi

Brass Alloy Grades : Brass CA 360, CA 345 and CA 377 / SAE J530, SAE J531 and ASA


Copper Forged Fittings Specification

Range : ½”NB to 24”NB in

Cupro Nickel Alloy Grades: ASTM B122, B171, B466, B467 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200,
